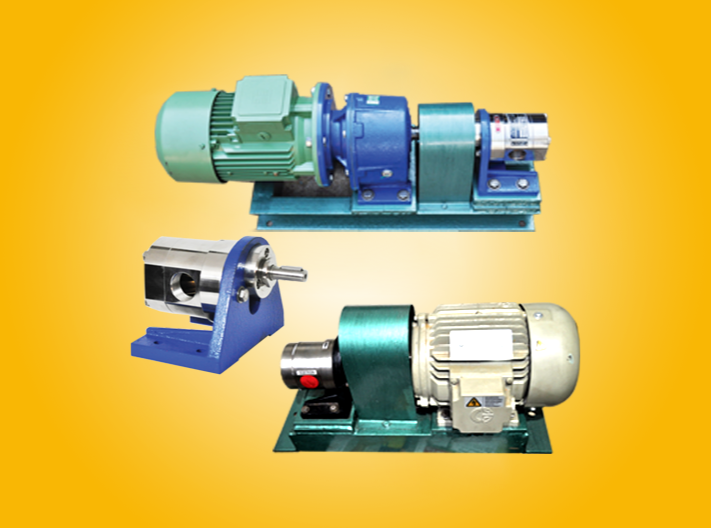

AESS-Series Stainless Steel Gear Pumps
PRODUCTS
The AESS-Series Stainless Steel pumps have been designed to cater various Non-Lubricative, Mild to Medium Corrosive, Low to Medium Specific Gravity, Food-Grade Liquids & Medium to High Viscous Liquids wherein a STAINLESS-STEEL construction is mandatory...
Available in :
Sizes : ½” upto 2½” Suction/Discharge.
Flow-rate : 25 LPM to 300 LPM @ 1500rpm.
Max. Disch. Pressure : 10 Kg/cm2.
Max. Temperature : Ambient.
Application :
Solvents & Base Chemicals, Caustic Bases, Insecticides / Pesticides,
Surfactants, Edible Oil in Food Industries, Sugar Syrup, Organic
Liquid, Paint/Resins, Light to Medium Acid etc.
| Model | Suction & Discharge (BSP Threaded Ends) |
Capacity in Ltr/Min (LPM) @ 1500 RPM | Recommended Horse-Power (hp) | ||||
|---|---|---|---|---|---|---|---|
| At 50 P.S.I. (H.P.) |
At 100 P.S.I. (H.P.) |
At 200 P.S.I. (H.P.) |
|||||
| AESS-050 | ½" x ½" | 25 | 1.0 | 1.5 | 4.0 | ||
| AESS-075 | ¾" x ¾" | 30 | 1.0 | 2.0 | 5.0 | ||
| AESS-100 | 1" x 1" | 50 | 1.5 | 3.0 | 5.0 | ||
| AESS-150 | 1½" x 1½" | 125 | 5.0 | 10.0 | 15.0 | ||
| AESS-200 | 2" x 2" | 200 | 7.5 | 12.5 | 20.0 | ||
| AESS-250 | 2½" x 2½" | 300 | 10.0 | 20.0 | 25.0 | ||
| NOTE : TABLE BASED ON SPECIFIC GRAVITY = 0.9 & CAPACITY @1500 RPM. | |||||||
| SIZE | A | B1 | C | C1 | D | D1 | E | E1 | E2 | F | G | H | H1 | H2 | L1 | L2 | P | Q | Weight (Kgs) |
PQ BSP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 050 | 144 | 30 | 18 | 3 | 12 | 7.8 | 50 | 120 | 71 | 75 | 14 | 71 | 54 | 110 | 99 | 45 | 4 | 13.6 | 5 | ½" x ½" |
| 075 | 157 | 30 | 18 | 3 | 13 | 7.8 | 50 | 120 | 71 | 75 | 14 | 71 | 54 | 110 | 110 | 47 | 4 | 14.6 | 6 | ¾" x ¾" |
| 100 | 183 | 35 | 25 | 3 | 15 | 10.5 | 45 | 140 | 94 | 86 | 17 | 90 | 74 | 140 | 126 | 57 | 5 | 17 | 8 | 1" x 1" |
| 150 | 235 | 38 | 30 | 3 | 20 | 11.5 | 50 | 153 | 111 | 98 | 22 | 100 | 77 | 150 | 160 | 75 | 6 | 22.5 | 15 | 1½" x 1½" |
| 200 | 270 | 42 | 30 | 3 | 24 | 12.5 | 70 | 190 | 110 | 110 | 25 | 112 | 85 | 170 | 180 | 90 | 8 | 27 | 21 | 2" x 2" |
| 250 | 270 | 42 | 30 | 3 | 24 | 12.5 | 70 | 190 | 110 | 110 | 25 | 112 | 85 | 170 | 180 | 90 | 8 | 27 | 27 | 2½" x 2½" |
RATED RPM : - @1500 rpm.
MOUNTING TYPE : - Horizontal Foot Mounting.
- Vertical Assembly.
DRIVE TYPE : - Directly Coupled Type.
- V-Belt Driven Type.
- Inline Gearbox Driven Type
- VFD Driven
SUCTION CONDITION : - To be Compulsorily Flooded.
SUCTION FOOT-VALVE / NRV : - To be Compulsorily Installed for all
Negative Suction
Conditions.(Client’s Scope)
PUMP BODY & COVERS : - Stainless Steel.
GEARS & SHAFTS : - Stainless Steel.
GEAR TYPE : - Single Helical.
- Double Helical.
SHAFT SEALING TYPE : - Mechanical Seal System.
- Gland Packing System.
- Oilseal System.
BEARING TYPE : - DU Bushes (4 Nos.)
