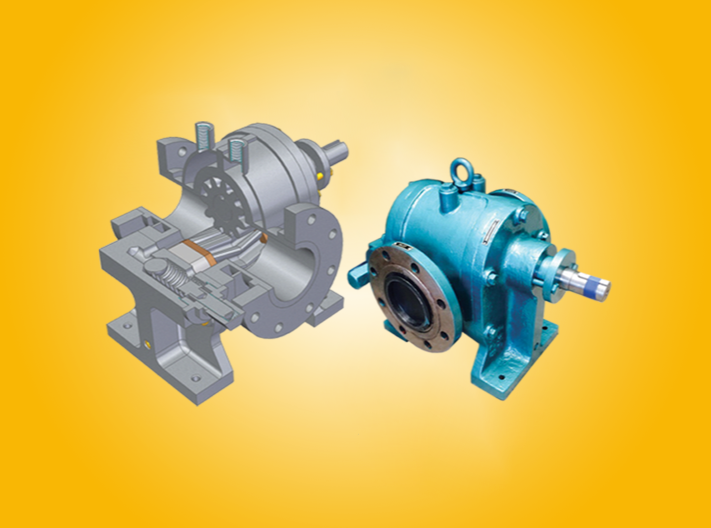

J-Series Bituflo Gear Pumps
PRODUCTS
The J-Series Bituflo pumps have been designed to cater any Viscous Fluids requiring Jacketing in Pumps for circulation of Steam or Hot Oil or Thermic Fluid to maintain the pumping medium hot enough for easy flow & also to avoid solidification and consecutive pump jamming after a restart of the pump when resuming operation post a pumping-cycle.
Available in :
Sizes : 2” upto 6” Suction/Discharge.
Flow-rate : 250 LPM to 3000 LPM @ 1500rpm.
Max. Disch. Pressure : 25 Kg/cm2.
Max. Temperature : 250℃.
Application :
Bitumen / Liquid Asphalt.
Molten Wax.
| Model | Suction & Discharge (Flanged Ends) | Capacity @ Recommended Operating Speed of 1000 RPM | Recommended Horse-Power (hp) at Different Pressures | ||||
|---|---|---|---|---|---|---|---|
| For 50 P.S.I. @1000rpm (H.P.) |
For 100 P.S.I. @1000rpm (H.P.) |
For 200 P.S.I. @1000rpm (H.P.) |
For 350 P.S.I. @1000rpm (H.P.) |
For 500 P.S.I. @1000rpm (H.P.) |
|||
| JD-2 | 2" x 2" | 167 LPM (10 m3/hr) | 5.0 | 5.0 | 15.0 | 25.0 | 30.0 |
| JD-3 | 3" x 3" | 278 LPM (17 m3/hr) | 7.5 | 10.0 | 20.0 | 30.0 | 40.0 |
| JD-4 | 4" x 4" | 557 LPM (33 m3/hr) | 10.0 | 20.0 | 40.0 | 60.0 | --- |
| JD-7 | 6" x 6" | 2000 LPM (120 m3/hr) | 30.0 | 75.0 | --- | --- | --- |
| Model | Suction & Discharge (Flanged Ends) | Capacity @ Rated Speed of 1500 RPM | Horse-Power (hp) at Different Pressures (For Reference) | ||||
|---|---|---|---|---|---|---|---|
| For 50 P.S.I. @1500rpm (H.P.) |
For 100 P.S.I. @1500rpm (H.P.) |
For 200 P.S.I. @1500rpm (H.P.) |
For 350 P.S.I. @1500rpm (H.P.) |
For 500 P.S.I. @1500rpm (H.P.) |
|||
| JD-2 | 2" x 2" | 250 LPM (15 m3/hr) | 7.5 | 10.0 | 20.0 | 30.0 | 50.0 |
| JD-3 | 3" x 3" | 417 LPM (25 m3/hr) | 10.0 | 15.0 | 25.0 | 40.0 | 60.0 |
| JD-4 | 4" x 4" | 835 LPM (50 m3/hr) | 15.0 | 25.0 | 50.0 | 75.0 | --- |
| JD-7 | 6" x 6" | 3000 LPM (180 m3/hr) | 40.0 | 75.0 | --- | --- | --- |
PUMP RPM : - @ 1000 rpm Recommended.
- @ 1500 rpm Rated.
MOUNTING TYPE : -- Horizontal Foot Mounting.
- Vertical Assembly. (For V-Belt Driven)
DRIVE TYPE : - Directly Coupled Type.
- V-Belt Driven Type.
SUCTION CONDITION : - To be Compulsorily Flooded.
PRESSURE RELIEF VALVE : -Externally Adjustable Integral Relief Valve.
PUMP BODY & COVERS : - Cast Steel.
GEARS & SHAFTS : - EN-24 Harden & Ground.
GEAR TYPE : - Double Helical.
SHAFT SEALING TYPE : -Gland Packing System.
BEARING TYPE : - Bi-Metallic Bronze Bushes (4 Nos.)
JACKET DETAILS : - Type : In-Built Type.
- Jacket Inlet : 3/4” Bsp Threaded.
- Jacket Outlet : 3/4” Bsp Threaded.
