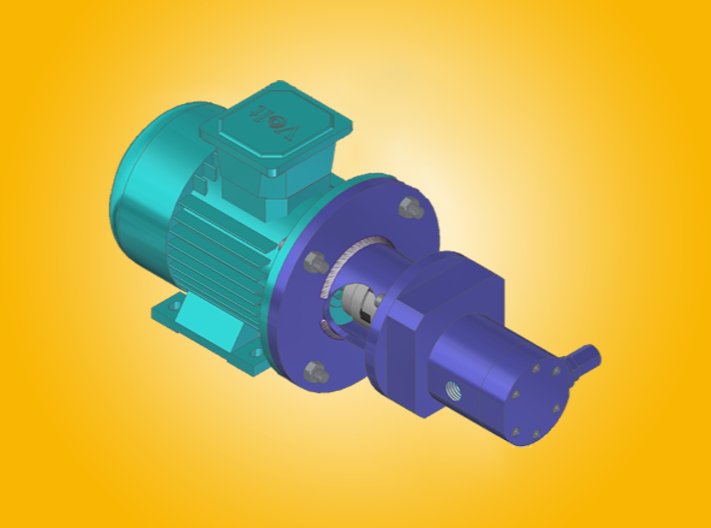

LA-Series Lubricating Pumps

PRODUCTS

The LA-Series Lubricating pumps have been designed to cater any requirements wherein lubricating oil has to be pumped to lubrication points in machines or at sliding/moving/rolling parts apart from the application of oil transfers having low flow-rate requirements. Incorporated with our generic 3-Part Design, these pumps provide a long trouble free service-life.

Available in :
Sizes : ⅛” upto ½” Bsp Threaded Suction/Discharge.
Flow-rate : 1 LPM to 15 LPM @ 1500rpm.
Max. Disch. Pressure : 10 Kg/cm2.
Max. Temperature : 80℃. (Higher Range upon request)

Application :
Various Grades of Oil Transfers.


LA-Series Lubricating Pump Classification

Model Suction & Discharge
(BSP Threaded Ends)
Capacity in Ltr/Min (LPM)
@ 1500 RPM
Recommended Horse-Power (hp)
For 50 P.S.I.
(H.P.)
For 100 P.S.I.
(H.P.)
For 200 P.S.I.
(H.P.)
LA‐0 " x " 1 0.25 0.25 0.25
LA‐1 ¼" x ¼" 3 0.25 0.33 0.33
LA‐2 " x " 5 0.33 0.50 0.75
LA‐3 ½" x ½" 10 0.50 0.75 1.00
LA‐4 ½" x ½" 15 0.50 1.00 1.50

General Construction / Specifications

  • RATED RPM : - @1500 rpm Rated.

  • MOUNTING TYPE : - Horizontal Foot Mounting.

  • DRIVE TYPE : - Directly Coupled Type.

  • SUCTION CONDITION : - To Be Compulsorily Flooded.

  • PRESSURE RELIEF VALVE : - Externally Adjustable Integral Relief Valve.

  • MOTOR MOUNTING BRACKET : - M.S. Fabricated & Machined.

  • PUMP BODY & COVERS : - Steel.

  • GEARS & SHAFTS : - EN-24 Hardened & Ground.

  • GEAR TYPE : - Single Helical.

  • SHAFT SEALING TYPE : - Oilseal System (2 Nos.)

  • INTERNAL BEARING TYPE : - Bronze Bushes (4 Nos.)

  • DRIVE NECK-BEARING TYPE : - Deep Groove Ball Brg. (1 No.)
