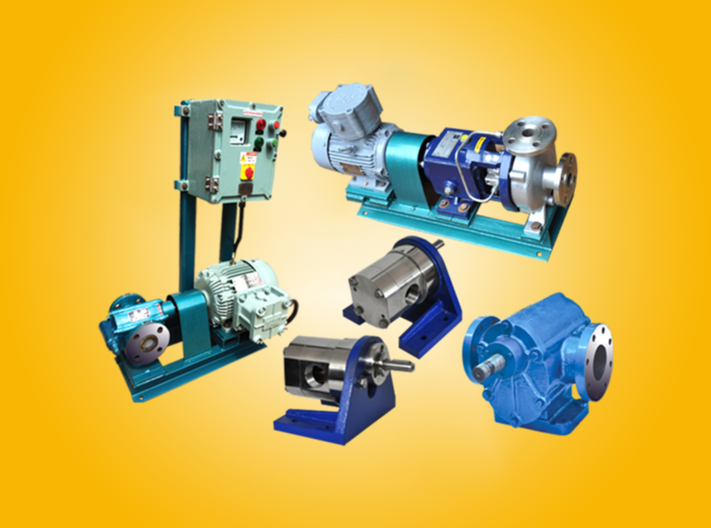

S-Series Chemflo Gear Pumps
PRODUCTS
The S-Series Chemflo pumps have been designed to cater various Non-Lubricative, Mild to Medium Corrosive, Low to Medium Specific Gravity, Food-Grade Liquids & Medium to High Viscous Liquids wherein a STAINLESS-STEEL construction is mandatory. These pumps are offered in both Gear-Pump Type & also in Centrifugal Type to cater the application needs...
Available in :
Sizes : ¾” upto 8” Suction/Discharge.
Flow-rate : 20 LPM to 3300 LPM @ 1000rpm.
Max. Disch. Pressure : 15 Kg/cm2.
Max. Temperature : Ambient.
Application :
Solvents & Base Chemicals, Caustic Bases, Insecticides / Pesticides,
Surfactants, Fire Fighting Foam (AFFF), Edible Oil in Food Industries,
Sugar Syrup, Organic Liquid, Paint/Resins, Light to Medium Acid etc
| Model | Port Options | Capacity in Ltr/Min (LPM) @ 1000 RPM | Recommended Horse-Power (hp) | ||||
|---|---|---|---|---|---|---|---|
| Suction & Discharge (BSP Threaded Ends) |
Suction & Discharge (Flanged Ends) |
At 50 P.S.I. (H.P.) |
At 100 P.S.I. (H.P.) |
At 200 P.S.I. (H.P.) |
|||
| SB-1 | ¾" x ¾" | --- | 20 | 1.0 | 1.5 | 3.0 | |
| SB-2 | 1" x 1" | 1" x 1" | 30 | 1.0 | 1.5 | 3.0 | |
| SB-3 | 1" x 1" | 1" x 1" | 35 | 1.5 | 2.0 | 4.0 | |
| SB-4 | 1" x 1" | 1" x 1" | 40 | 1.5 | 2.0 | 4.0 | |
| SC-1 | 1½" x 1½" | 1½" x 1½" | 50 | 2.0 | 3.0 | 5.0 | |
| SC-2 | 1½" x 1½" | 1½" x 1½" | 65 | 3.0 | 3.0 | 7.5 | |
| SC-3 | 2" x 2" | 2" x 2" | 100 | 4.0 | 5.0 | 7.5 | |
| SC-4 | 2" x 2" | 2" x 2" | 135 | 4.0 | 5.0 | 7.5 | |
| SC-5 | --- | 2½" x 2½" | 165 | 5.0 | 7.5 | 12.5 | |
| SD-1 | --- | 2½" x 2½" | 200 | 7.5 | 10.0 | 15.0 | |
| SD-2 | --- | 3" x 3" | 265 | 7.5 | 12.5 | 20.0 | |
| SD-3 | --- | 3" x 3" | 335 | 10.0 | 12.5 | 25.0 | |
| SD-4 | --- | 4" x 4" | 665 | 12.5 | 25.0 | 40.0 | |
| SD-5 | --- | 4" x 4" | 1000 | 20.0 | 30.0 | 60.0 | |
| SD-6 | --- | 6" x 6" | 1350 | 30.0 | 60.0 | --- | |
| SD-7 | --- | 6" x 6" | 2000 | 50.0 | 100.0 | --- | |
| SD-8 | --- | 8" x 8" | 3330 | 75.0 | 170.0 | --- | |
| NOTE : TABLE BASED ON SPECIFIC GRAVITY = 0.9 & CAPACITY @1000 RPM. | |||||||
RATED RPM : - @1000 rpm.
MOUNTING TYPE : - Horizontal Foot Mounting.
- Trolley Mounted.
DRIVE TYPE : - Directly Coupled Type.
- V-Belt Driven Type.
- Inline Gearbox
Driven Type.
- VFD Driven.
SUCTION CONDITION : - To Be Compulsorily Flooded.
SUCTION FOOT-VALVE / NRV : - To be Compulsorily Installed for all Negative Suction
Conditions.
(Client’s Scope)
PRESSURE RELIEF VALVE : - Externally Adjustable Integral Relief Valve.
PUMP BODY & COVERS : - Stainless Steel.
GEARS & SHAFTS : - Stainless Steel.
GEAR TYPE : - Single Helical.
- Double Helical.
SHAFT SEALING TYPE : - Mechanical Seal System.
- Gland Packing System.
BEARING TYPE : - Bi-Metallic Bronze Bushes (4 Nos.)
- Graphite Filled Teflon Bushes
(4 Nos.)
- Teflon Bushes (4 Nos.)
- DU-Bush Sleeved S.S. Bushes (4 Nos.)
