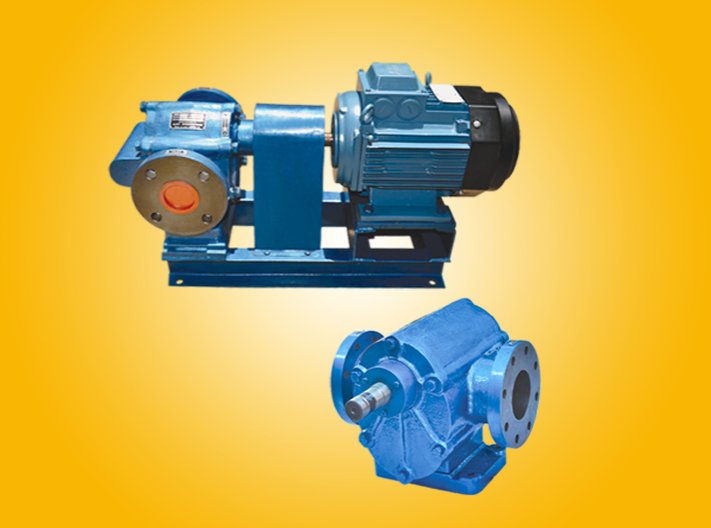

G-Series Oilflo Gear Pumps
PRODUCTS
The G-Series Oilflo pumps combines the Quality of both Simplicity & Sturdyness in the 3-Part Design wherein the Drive & Driven Gear Assembly along-with Bearings are housed inside the Main-Body (Casing) itself, hence allowing the achievement of both the alignment & accuracy resulting in a troublefree long service-Life...
Available in :
Sizes : ½” upto 8” Suction/Discharge.
Flow-rate : 20 LPM to 5000 LPM @ 1500rpm.
Max. Disch. Pressure : 25 Kg/cm2.
Max. Temperature : 200℃.
Application :
Various Grades of Indl. Oils, Edible/Vegetable Oil, Bio-Oil, Fish-Oil,
Soya-Lecithin, Transformer Oil, Lube Oil, Hydraulic Oil, Waste Oil,
Furnace Oil (FO), Hot Oil Circulation, Thermic Fluid Circulation.
| Model | Port Options | Capacity in Ltr/Min (LPM) @ 1500 RPM |
Recommended Horse-Power (hp) at Different Pressures | |||||
|---|---|---|---|---|---|---|---|---|
| Suction & Discharge (BSP Threaded Ends) |
Suction & Discharge (Flanged Ends) |
At 50 P.S.I. (H.P.) |
At 100 P.S.I. (H.P.) |
At 200 P.S.I. (H.P.) |
At 350 P.S.I. (H.P.) |
At 500 P.S.I. (H.P.) |
||
| GA-1 | 1/2" x 1/2" | --- | 20 | 0.75 | 1.5 | 3.0 | 5.0 | --- |
| GB-1 | 3/4" x 3/4" | --- | 30 | 1.0 | 1.5 | 4.0 | 5.0 | 7.5 |
| GB-2 | 1" x 1" | 1" x 1" | 40 | 1.5 | 2.0 | 5.0 | 7.5 | 12.5 |
| GB-3 | 1" x 1" | 1" x 1" | 50 | 1.5 | 3.0 | 5.0 | 10.0 | 15.0 |
| GB-4 | 1" x 1" | 1" x 1" | 60 | 2.0 | 4.0 | 7.5 | 10.0 | 15.0 |
| GC-1 | 1½" x 1½" | 1½" x 1½" | 80 | 3.0 | 5.0 | 10.0 | 15.0 | 20.0 |
| GC-2 | 1½" x 1½" | 1½" x 1½" | 100 | 3.0 | 5.0 | 12.5 | 20.0 | 25.0 |
| GC-3 | 2" x 2" | 2" x 2" | 150 | 4.0 | 7.5 | 15.0 | 25.0 | 40.0 |
| GC-4 | 2" x 2" | 2" x 2" | 200 | 5.0 | 7.5 | 15.0 | 30.0 | 40.0 |
| GC-5 | --- | 2½" x 2½" | 250 | 5.0 | 10.0 | 20.0 | 30.0 | 50.0 |
| GD-1 | --- | 2½" x 2½" | 300 | 7.5 | 12.5 | 25.0 | 40.0 | 60.0 |
| GD-2 | --- | 3" x 3" | 400 | 7.5 | 15.0 | 30.0 | 50.0 | 75.0 |
| GD-3 | ---- | 3" x 3" | 500 | 12.5 | 20.0 | 40.0 | 60.0 | --- |
| GD-4 | --- | 4" x 4" | 1000 | 20.0 | 40.0 | 80.0 | --- | --- |
| GD-5 | --- | 4" x 4" | 1500 | 30.0 | 60.0 | 100.0 | --- | --- |
| GD-6 | --- | 6" x 6" | 2000 | 40.0 | 80.0 | --- | --- | --- |
| GD-7 | --- | 6" x 6" | 3000 | 60.0 | 100.0 | --- | --- | --- |
| GD-8 | --- | 8" x 8" | 5000 | 100.0 | 215.0 | --- | --- | --- |
RATED RPM : - @1500 rpm
MOUNTING TYPE : - Horizontal Foot Mounting.
- Trolly Mounted.
DRIVE TYPE : - Directly Coupled.
- Gear-Box Driven.
PUMP BODY & COVERS : - Graded Cast Iron / CS.
GEARS & SHAFTS : -EN-24 Hardened & Ground.
GEAR TYPE : - Spur.
- Single Helical.
- Double Helical.
SHAFT SEALING TYPE : - Mechanical Seal System.
- Gland Packing System.
- Oilseal
System.
PRESSURE RELIEF VALVE : - Externally Adjustable Integral Relief Valve.
BEARING TYPE : - Deep Groove Ball Bearings (4 Nos.)
